Scottish Power Approved Low Voltage Resin Filled Joints

Tyco Service Connections

Scottish Power Approved Low Voltage Resin Filled Joints

Service ConnectionsCustomers should satisfy themselves that they have Scottish Power approval to install these joints on the Scottish Power network.

Features at a glance

  • Generous dimensions to accommodate modern mechanical connectors supplied with the kits.
  • Clear and detailed drawing-based installation instructions.
  • Mechanical connectors supplied requires no special tooling.
  • Insulating piercing connectors incorporating on the mains service connections reduce cable preparation times.

Standards: Connectors designed to:

  • BS4579 Part 1 and Part 3
  • Engineering Recommendations C79
  • BS EN 61238-1

Resin filled joints and connectors type tested to:

  • Engineering Recommendations C81/ BS7888:part3:1998
  • BS EN 50393:2006

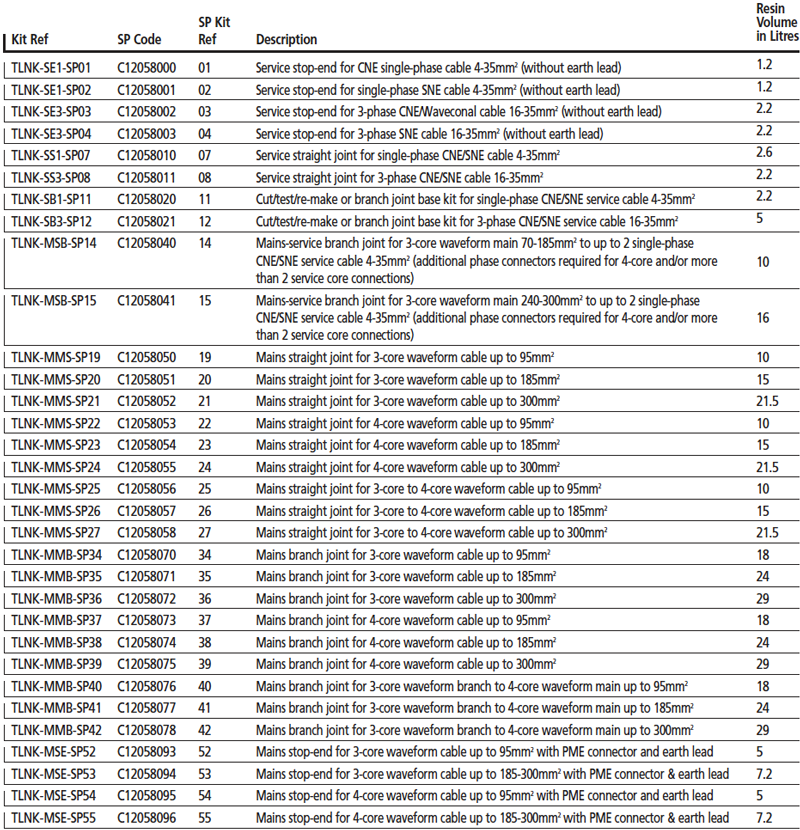

Kits currently available cover the popular polymeric applications and are as follows:

Please Note: Joint kits do not include resin

Links

Cable Services web link: Scottish Power Approved Low Voltage Resin Filled Joints

Cable Services Catalogue PDF: Scottish Power Approved LV Resin Filled Joint Products
catalogue

Service Connections Sales Enquiry

Cable Services are able to offer full technical support for the full product range of service connection products.
Please contact one of our sales offices for product information and technical specifications.
